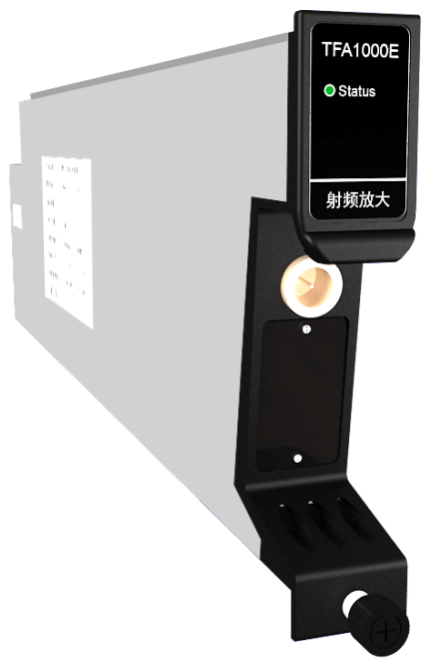

TFA1000E Preamplifier Module

Overview    TFA1000EThe preamplifier module is a high performance and high quality amplifier.Together with OPTIVO optical transmission platform rack and TPS1000E power supply, it constitutes a forward RF transmission system with excellent performance.It can be used to amplify digital TV signal, telephone voice signal and data transmission system. Features         ● Adopt high-performance gallium arsenide module,and has excellent CTB、CSO indexes;
        ● Real-time transmission of the amplifier operating status parameters to the platform and display them；
        ● Modular design, excellent heat dissipation performance；
        ● Gain adjustable, slope electronic control is adjustable, easy to debug；
        ● Excellent heat treatment ensures the long-term reliability of the equipment；
        ● Supports hot swap；
        ● The average power and total power of each channel can be displayed through the main control interface；
        ● The panel display output level supports slight adjustment according to the measured frequency point signal amplitude, which is convienent for debugging and management；
        ● The open network management interface meets the national standard of network management，Conforming to SCTE HMS network management standards, all locally monitored parameters can be remotely managed in real time.
        ● The downlink RF signal is amplified. Its built-in microprocessor monitors the amplifier operating status parameters and transmits them to the OPTIVO platform through the bus Technical Specifications

No.	Item		Unit	Parameter	Note
1	Frequency Range		MHz	45～1002
2	Minimum Full Gain		dB	22
3	Maximum Output Level		dBuV	≥100
4	RF Input signal Level		dBuV	70～100
5	Output level adjustment range		dB	0 ～ -20
6	Range of equilibrium regulation		dB	0 ～ 15
7	Noise Factor		dB	≤8（0dB equilibrium）
8	Slope adjustment range		dB	0～ 15
9	Back drop		dB	≥65
10	RF input reflection loss		dB	≥16
11	Nominal RF input impedance		Ω	75
12	Flatness		dB	±0.5
13	Output level detection		dB	-20±0.5
14	Group delay		ns	≤10
15	Nonlinear distortion index	CTB	dB	≥80
		CSO	dB	≥80
		XM	dB	≥75
16	Operating temperature		℃	-20～+55
17	Storage temperature		℃	-30～+70
18	Humidity			5%—95%	Non-condensation
19	Size		mm	25.5×126×392.5
20	Power dissipation		W	＜10
