AX1800 Wireless Router W3（1GE WAN+3GE LAN+AX1800）

W3 is a AX1800 Wi-Fi 6 Router, built with the latest generation Wi-Fi 6 technology. Equipped with OFDMA, W3 provides ...

Current position：HOME > PON

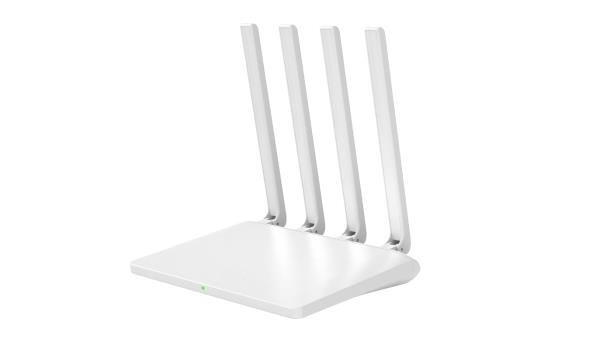

AX1800 Wireless Router W3（1GE WAN+3GE LAN+AX1800）


Overview        W3 is a AX1800 Wi-Fi 6 Router, built with the latest generation Wi-Fi 6 technology. Equipped with OFDMA, W3 provides speeds up to 1.8Gbps 4x faster than 11ac technology, and greater capacity to handle more devices on your network, ensuring that you can enjoy blazing fast Internet connections on all your devices. What’s more, powerful dual-core processor ensures superior performance for concurrent real-time applications such as multimedia streaming, online gaming, and audio/video chats. You can get best-in-class cybersecurity with the latest WPA3 to protect your family from malwares, stolen passwords, identity theft, and hacker attacks. Frankly speaking, W3 can be used in large houses and small offices for a stable and fast Wi-Fi experience. Features         ● Complies with the next generation Wi-Fi 6 (IEEE 802.11ax) standard.
        ● Simultaneous 1201Mbps on 5GHz and 573.5Mbps on 2.4GHz for a total of 1774.5Mbps.
        ● OFDMA to improve capacity and efficiency of your network, so more devices can connect without slowing down your Wi-Fi.
        ● TWT (Target Wake Time) technology reduces your devices' power consumption to extend their battery life.
        ● MU-MIMO technology allows to transfer data to multiple devices at the same time.
        ● 4 External 6dBi fixed antennas is perfect for long-distance wireless transmission.
        ● Beamforming technology improves directional signal transmission, improving the bandwidth efficiency.
        ● Full gigabit ports offer larger capability for data forwarding via cable connection.
        ● Supports DHCP, Static IP, PPPoE PPTP and L2TP broadband functions.
        ● Supports WPA3 wireless security protocols to ensure network security.
        ● Support VPN server, Universal Repeater, Multiple SSIDs, WPS, Smart QoS, Wi-Fi Scheduler.
        ● Parental Control on the router lets you easily manage content and time online on any connected device. Technical Specifications

Hardware

Interface

- 3*1000Mbps LAN Ports

- 1*1000Mbps WAN Port

Power Supply

- 12V DC/1A

Antenna

- 2 * 2.4GHz fixed antennas(6dBi)

- 2 * 5GHz fixed antennas(6dBi)

Button

- 1*RST    - 1*WPS/Mesh

LED Indicators

- 1 *SYS(Red&Green)

Dimensions (L x W x H)

- 204 x 127 x 35mm

Wireless

Standards

- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,

- IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

RF Frequency

-  2.4~2.4835GHz

-  5.18~5.825GHz

Data Rate

-  2.4GHz: Up to 573.5Mbps (2*2 40MHz)

-  5GHz: Up to 1201Mbps (2*2 80MHz)

EIRP

-  2.4GHz < 22dBm

-  5GHz < 20dBm

Wireless Security

- WPA2/WPA Mixed

- WPA3

Reception Sensitivity

- 2.4G: 11b: <-85dbm;

            11g: <-72dbm;

            11n: HT20<-68dbm HT40: <-65dbm

- 5G: 11a:<-72dbm;

           11n: HT20<-68dbm HT40: <-65dbm

           11ac: <-55dbm

           11ax VHT80: <-46dbm

           11ax VHT160: <-43dbm

Software

Basic

- Internet Settings

- Wireless Settings

- Parental Control

- Guest Network Settings

- Smart QoS

Network

- Internet Setup

- LAN Setup

- DDNS

- IPTV

- IPv6

Wireless

- Wireless Setup

- Guest Network

- Schedule

- Access Control

- Advanced

- Parental Control

- Smart QoS

Device Management

- Routing Table

- Static Route

- IP/MAC Binding

Security

- IP/Port Filtering

- MAC Filtering

- URL Filtering

NAT

- Virtual Server

- DMZ

- VPN Passthrough

Remote network

- L2TP Server

- Shadow socks

- Account Manage

Service

- Remote

- UPnP

- Schedule

Tools

- Change Password

- Time Setup

- System

- Upgrade

- Diagnosis

- Route Tracking

- Log

Operation Mode

- Gateway mode

- Bridge mode

- Repeater mode

- WISP mode

Other Function

- Multi-language automatic adaptation

- Domain Access

- QR Code

- - LED Control

- Reboot

- Logout

Others

Package Contents

- W3 Wireless Router *1

- Power Adapter *1

- RJ45 Ethernet Cable *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
